Syntax MZ6 IP67 Waterproof Portable Power Distribution Board 16A/3P 1-Phase Outdoors Yellow & Black Box 202021.5CM

Name: Syntax MZ6 IP67 Waterproof Portable Power Distribution Board 16A3P 1Phase Outdoors Yellow amp Black Box 2020215CM
Brand: Syntax
Price: 1 USD

China Syntax MZ6 IP67 Waterproof Portable Power Distribution Board 16A/3P 1-Phase Outdoors Yellow & Black Box 20*20*21.5CM wholesale

Poles : 6 ways

Model Number : MZ6

Material : PC (Polycarbonate Resin, the best material of plastic)

Brand Name : Syntax

Color : Yellow & Black

MOQ : 5 sets

Packaging Details : Packed by carton

Supply Ability : 1000sets / month

Payment Terms : L/C,T/T,Western Union

Dimension : 200*200*215mm

Certification : EN60439-4, IEC60529, SAA

IP Grade : IP67 Waterproof

Place of Origin : China

Delivery Time : 15 days

Contact Now

Syntax MZ6 IP67 Waterproof Portable Power Distribution Board 16A/3P 1-Phase Outdoors Yellow & Black Box 20*20*21.5CM

Product Overview

Syntax MZ6 IP67 Waterproof Portable Distribution Box 16A/5P Single Phase 230v 20*20*21.5CM

Attribute	Value
Box	MZ6 Portable Distribution Board IP67
Color	Black & Yellow
Dimension of Box	200 × 200 × 215 mm
Incoming & Main Switch:	1 x 3P 16A 220V IP67 Panel Mounted Inlet, no protection.
Outgoing 1 & Breakers:	1 x 3P 16A 220V IP67 Panel Mounted Sockets, no protection.
Outgoing 2 & Breakers:	1 x 3P 10A 220V IP66 GPO 5 holes, no protection.
Outgoing 3 & Breakers:	1 x 3P 16A 220V IP66 GPO 5 holes, no protection.
Brands	Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax.

Technical Drawings

Syntax MZ6 IP67 Waterproof Portable Power Distribution Board 16A/3P 1-Phase Outdoors Yellow & Black Box 20*20*21.5CM

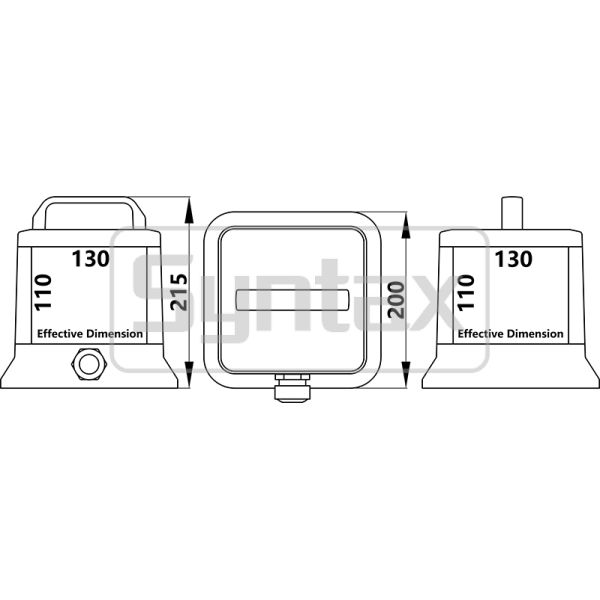

Dimension Drawing of Empty Box

Features and Benefits

Compliance Standards: Design based on EN 60439-4, IEC 60529.
IP Rating: Up to IP67 (Weatherproof & Shockproof).
Available Colors: Yellow & Black.
Enclosure Material: High-Grade PC (Polycarbonate Resin).
Stackable Design for easier storage and daisy chaining.
Operating Temperature: -20℃～+75℃.
Dimensions: 200 × 200 × 215 mmWarranty:
24-Month Warranty on all parts and manufacturing defects

The Advantages of Our Distribution Boxes:

Premium Polycarbonate (PC) Build: Housed in a heavy-duty Polycarbonate enclosure—the absolute gold standard for portable distribution. It delivers an unmatched combination of lightweight portability, extreme impact hardness, structural strength, and a smooth, professional finish that lasts.
Space-Saving Stackable Design: Engineered with an integrated top handle and matching molded feet for secure, multi-tier nesting. This modular layout maximizes transport efficiency and storage space.
Rigorous IP67 Weatherproofing: Built to withstand the harshest outdoor conditions, providing complete sealing against heavy rain, sleet, snow, and external ice formation.
Tailored for Rental & Stage: Specifically optimized for stage power rentals, event temporary setups, and light industrial tasks requiring safe, plug-and-play single-phase power.

Detailed Specification

Designed specifically for stage rentals and live entertainment, this 16A single-phase MZ6 portable power distribution box features 3rd-generation industrial plugs and sockets, delivering robust IP67 waterproof reliability. Rated at 16A, 220VAC (3-pin), it serves as a direct, unprotected pass-through splitter box.

The configuration includes:
• Incoming Feed: One 3P 16A 220V IP67 panel-mounted inlet (direct/unprotected).
• Outgoing Socket 1: One 3P 16A 220V IP67 panel-mounted straight-type socket.
• Outgoing Socket 2: One 3P 10A 220V IP66 GPO (3-pin/multi-configuration) weather-resistant outlet.
• Outgoing Socket 3: One 3P 16A 220V IP66 GPO (3-pin/multi-configuration) weather-resistant outlet.

Housed in a heavy-duty, impact-resistant PC (polycarbonate) IP67 enclosure, this compact unit is perfect for demanding temporary stage and outdoor event environments. Bespoke custom-built configurations are available upon request.

Target Applications:

The MZ series is engineered for versatile, high-performance power across demanding modern industries:

Entertainment & Audio-Visual: Stage power rentals, live concerts, touring setups, film/TV sets, sporting events, and presentation centers.
Public Infrastructure & Construction: Urban rail transit, metro tunnels, airports, roads, bridges, and active construction sites.
Heavy Industry & Production: Metal processing plants, paper mills, automated electronics/food production lines, and automotive assembly facilities.
Energy, Marine & Mining: Wind/solar stations, ports, docks, container terminals, drilling rigs, strip mining, and quarries.
Commercial & Civil Use: Market squares, outdoor exhibitions, hospitals, schools, shopping malls, and EV charging infrastructure.

Custom Solutions (OEM / ODM):

At NHP / Hyper, we engineer advanced power distribution enclosures ranging from 16 Amp up to 630 Amp under our signature Syntax brand.

If our standard MZ6 configuration does not fully align with your specific project needs, our elite technical team provides full OEM and ODM services to deliver bespoke, custom-built power distribution units built exactly to order.
